VAST XXT TL3

ZEISS VAST XXT TL3 is characterized by their robust design. In comparison to the TL1, the TL3 can carry 1.5 times more weight and use longer extensions, especially in the horizontal directions. ZEISS VAST XXT TL3 is commonly used in shop floor machines such as the DuraMax.

Stylus systems on VAST XXT TL3 allow a vertical length range of 30-150 mm, horizontal max length of 65 mm, and a maximum weight of 15 grams including the adaptor plate.

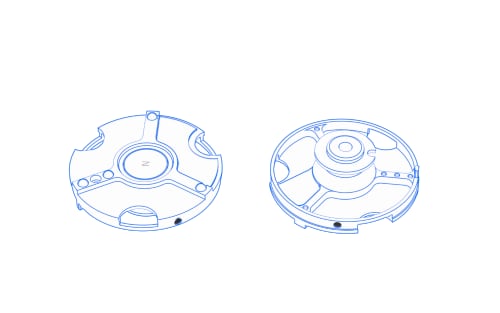

  • VAST XXT TL3 standard
    VAST XXT TL3 standard

    Adapter plate VAST XXT TL3 Standard

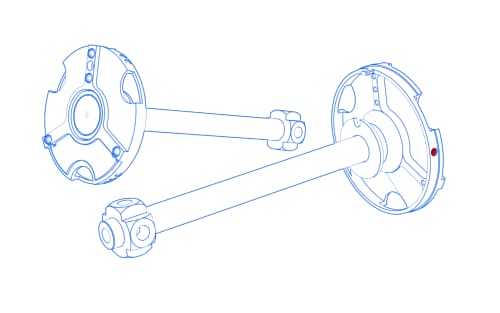

  • VAST XXT TL3 with plate extension and cube
    VAST XXT TL3 with plate extension and cube

    Adapter plate VAST XXT TL3 with plate extension and cube

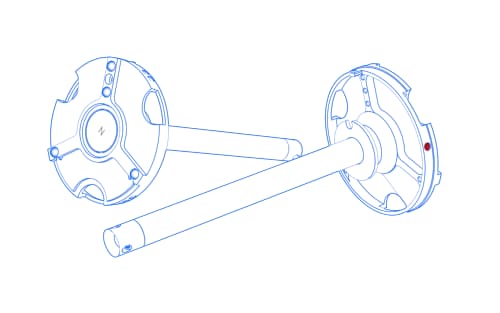

  • VAST XXT TL3 with adapter for rotatable elements
    VAST XXT TL3 with adapter for rotatable elements

    Adapter plate VAST XXT TL3 with with adapter for rotatable elements

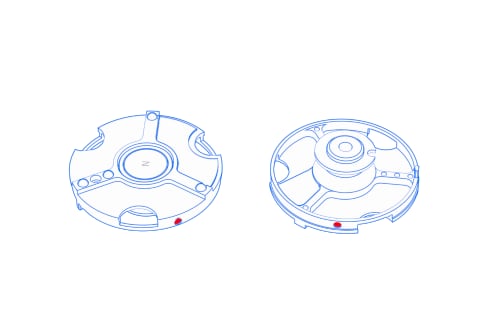

  • VAST XXT TL3 Reference
    VAST XXT TL3 Reference

    Reference adapter plate VAST XXT TL3
