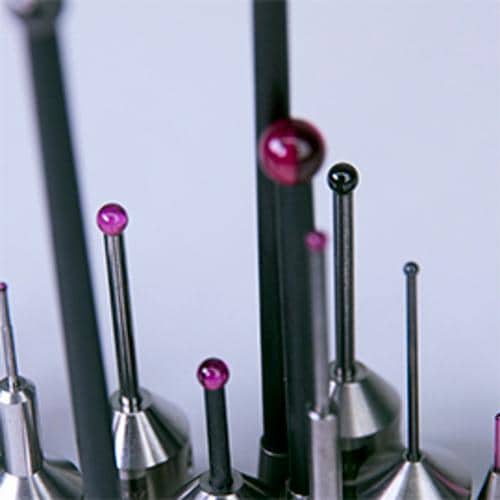

Stylus Systems (8.029)

Stylus systems are the basis for accurate measurements. We offer a variety of components for building your individual stylus system.
Ø Sphere (DK)
Length (L)
Meas. Len.
Stylus M5, DK4 L122
626105-0464-122
Ø Sphere (DK)
4,0 mm
Length (L)
122,0 mm
Ø Shaft (DS)
2,5 mm
Meas. Len.
112,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
1.244,00 krSales tax not included
 Shipment within: 5 days
Stylus M3, DK0,2 L19 stepped
626123-5144-019
Ø Sphere (DK)
0,2 mm
Length (L)
19,0 mm
Ø Shaft (DS)
1,0 mm
Meas. Len.
13,0 mm
Ø2 Shaft (DSE)
0,15 mm
2. Meas. Len.
3,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
933,00 krSales tax not included
 Shipment within: 5 days
Stylus M5, DK5 L168
626105-0515-168
Ø Sphere (DK)
5,0 mm
Length (L)
168,0 mm
Ø Shaft (DS)
3,5 mm
Meas. Len.
158,0 mm
Styl. Tip Mat.
Si-N
Shaft Mat.
Tung. Carb
714,00 krSales tax not included
 Shipment within: 5 days
Adapter plate VAST, double cube, REACH CFX 3+
626107-2200-960
Meas. Len.
263,1 mm
6.879,00 krSales tax not included
 Shipment within: 17 days

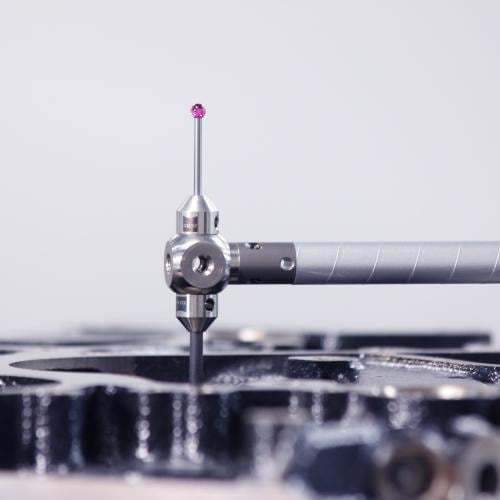

REACH CFX 1 - Extension, M3 XXT
626103-5140-000
Length (L)
140,0 mm
1.244,00 krSales tax not included
 Shipment within: 10 days
Stylus M3, DK1 L14 stepped
626123-0044-014
Ø Sphere (DK)
1,0 mm
Length (L)
14,0 mm
Ø Shaft (DS)
1,0 mm
Meas. Len.
8,0 mm
Ø2 Shaft (DSE)
0,8 mm
2. Meas. Len.
5,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
530,00 krSales tax not included
 Shipment within: 5 days
Stylus with thread, M5, cylinder
626115-0302-060
Ø Sphere (DK)
3,0 mm
Length (L)
60,0 mm
Ø Shaft (DS)
3,0 mm
Meas. Len.
50,0 mm
Styl. Tip Mat.
Tung. Carb
Shaft Mat.
Tung. Carb
1.993,00 krSales tax not included
 Shipment within: 10 days
REACH CFX 3 - Extension, M5
626107-2600-100
Length (L)
600,0 mm
5.312,00 krSales tax not included
 Shipment within: 10 days
Double angle, M5, ThermoFit Pro system
626107-6023-023
Length (L)
16,0 mm
Meas. Len.
10,0 mm
1. Angle (°)
73,0 °
1.095,00 krSales tax not included
 Shipment within: 10 days
Stylus M5, DK4 L94
626105-0465-094
Ø Sphere (DK)
4,0 mm
Length (L)
94,0 mm
Ø Shaft (DS)
2,5 mm
Meas. Len.
84,0 mm
Styl. Tip Mat.
Si-N
Shaft Mat.
Tung. Carb
668,00 krSales tax not included
 Shipment within: 5 days
