Styli (7.367)

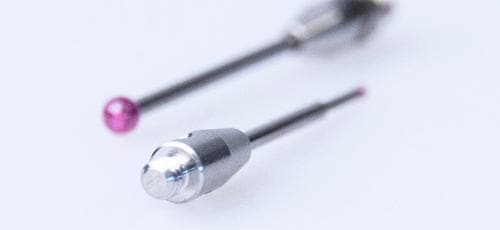

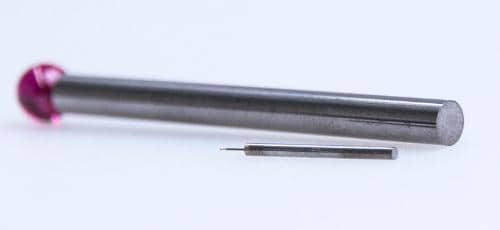

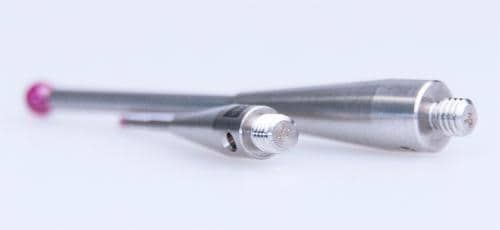

ZEISS styli are available in a wide variety of designs. A large portfolio of standard styli for M2, M3, M3XXT or M5 threads is available. For these styli, different stylus elements made of different materials and different shaft designs are available. Furthermore, there are also styli without thread, as well as special styli for form, contour and surface measurements available.
Stylus M2, DK2,5 L25
626102-5855-025
Ø Sphere (DK)
2,5 mm
Length (L)
25,0 mm
Ø Shaft (DS)
1,5 mm
Meas. Len.
19,0 mm
Styl. Tip Mat.
Si-N
Shaft Mat.
Tung. Carb
645,00 krSales tax not included
 Delivery time: > 30 days
Stylus M5, DK10 L113
626105-1025-113
Ø Sphere (DK)
10,0 mm
Length (L)
113,0 mm
Ø Shaft (DS)
6,0 mm
Meas. Len.
100,0 mm
Styl. Tip Mat.
Si-N
Shaft Mat.
Tung. Carb
1.219,00 krSales tax not included
 Delivery time: > 30 days
Stylus M3, DK1,5 L40
626123-0144-040
Ø Sphere (DK)
1,5 mm
Length (L)
40,0 mm
Ø Shaft (DS)
1,0 mm
Meas. Len.
34,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
466,00 krSales tax not included
 Delivery time: > 30 days
Stylus M2, DK2 L43
626102-0244-043
Ø Sphere (DK)
2,0 mm
Length (L)
43,0 mm
Ø Shaft (DS)
1,0 mm
Meas. Len.
37,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
490,00 krSales tax not included
 Delivery time: > 30 days
Stylus M5, DK5 L112
626105-0514-112
Ø Sphere (DK)
5,0 mm
Length (L)
112,0 mm
Ø Shaft (DS)
3,5 mm
Meas. Len.
102,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
884,00 krSales tax not included
 Delivery time: > 30 days
Stylus M5, DK12 L159
626105-1225-159
Ø Sphere (DK)
12,0 mm
Length (L)
159,0 mm
Ø Shaft (DS)
6,0 mm
Meas. Len.
146,0 mm
Styl. Tip Mat.
Si-N
Shaft Mat.
Tung. Carb
1.481,00 krSales tax not included
 Delivery time: > 30 days
Stylus M5, DK10 L150, ThermoFit
626105-1021-150
Ø Sphere (DK)
10,0 mm
Length (L)
150,0 mm
Ø Shaft (DS)
6,0 mm
Meas. Len.
137,0 mm
Styl. Tip Mat.
Si-N
Shaft Mat.
Carbon Fiber
1.792,00 krSales tax not included
 Delivery time: > 30 days
Stylus M3 XXT, DK1 L18 stepped
626103-0045-018
Ø Sphere (DK)
1,0 mm
Length (L)
18,0 mm
Ø Shaft (DS)
1,0 mm
Meas. Len.
9,0 mm
Ø2 Shaft (DSE)
0,8 mm
2. Meas. Len.
5,0 mm
Styl. Tip Mat.
Si-N
Shaft Mat.
Tung. Carb
621,00 krSales tax not included
 Delivery time: > 30 days
Stylus M5, DK1,5 L53
626105-0144-053
Ø Sphere (DK)
1,5 mm
Length (L)
53,0 mm
Ø Shaft (DS)
1,0 mm
Meas. Len.
43,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
585,00 krSales tax not included
 Delivery time: > 30 days
Stylus M2, DK0,2 L9 stepped
626102-5144-009
Ø Sphere (DK)
0,2 mm
Length (L)
9,0 mm
Ø Shaft (DS)
1,0 mm
Meas. Len.
3,0 mm
Ø2 Shaft (DSE)
0,15 mm
2. Meas. Len.
3,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
944,00 krSales tax not included
 Delivery time: 3 days
The different shaft materials

The different shaft materials

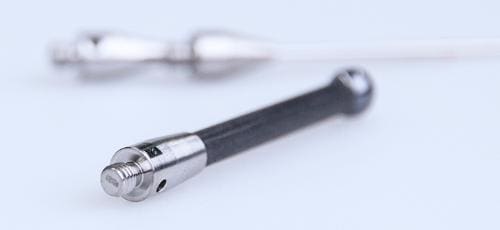

The shaft material used and the shaft cross-section have the greatest influence on the stylus rigidity. For standard styli, ZEISS uses shafts made of a high-strength carbide. These represent a good compromise in terms of weight, deflection and thermal linear expansion. Styli with ThermoFit shafts are particularly light, stiff and have only a small linear expansion under the influence of heat. They are therefore particularly suitable for applications in the M3XXT range and for long styli with a large shaft thickness. ZEISS is the only supplier to use a high-strength Grade 5 titanium alloy for the adapters. This gives the adapters high rigidity and makes them significantly lighter than steel adapters and also makes them anti-magnetic and corrosion-resistant.
The suitable sphere material

The suitable sphere material

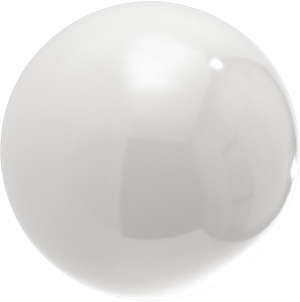

Usually a sphere is used as the stylus element. This sphere can be made of different materials and is suitable for different applications depending on the material. The standard are ruby spheres, but in combination with continuous scanning they can wear out or apply material to some surfaces. An alternative is silicon nitride, which has less material application when scanning aluminum, for example. Diamond coated or solid diamond spheres are especially suitable for scanning hard surfaces or soft aluminum alloys. Even sharp edges or single point scans with high load can be reliably performed. They have a very long durability, as they do not wear out and do not raise material.
