Sensor Racks

Sensor racks are used to store probe systems and sensors on the coordinate measuring machine. System expansions are included - precisely fitting and versatile. The changing magazines are integrated into the machine software, so that the probe change is carried out automatically. All ZEISS configurations are supported by suitable probe bays.
Read more about Sensor Racks
Multi Sensor Rack (MSR) X=1200, for Bridge CMM
626100-8332-000
Measuring Area X
1200
29.444,00 krSales tax not included
 Shipment within 2 Working days
Multi Sensor Rack (MSR) mini X=500
626100-9392-000
Measuring Area X
500
10.352,00 krSales tax not included
 Shipment within 2 Working days
Multi Sensor Rack (MSR) X=1000 H450, for Spectrum
626100-9322-010
Measuring Area X
1000
28.380,00 krSales tax not included
 Shipment within 2 Working days

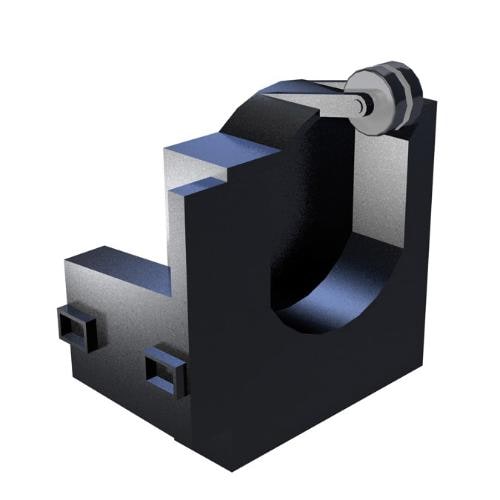

Probe socket RDS CFS
621770-8050-000
3.870,00 krSales tax not included
 Shipment within 2 Working days
Multi Sensor Rack (MSR) X=1600, for Bridge CMM
626100-8342-000
Measuring Area X
1600
30.627,00 krSales tax not included
 Shipment within 2 Working days
Multi Sensor Rack (MSR) X=700 H450, for Bridge CMM
626100-8302-010
Measuring Area X
700
26.015,00 krSales tax not included
 Shipment within 2 Working days

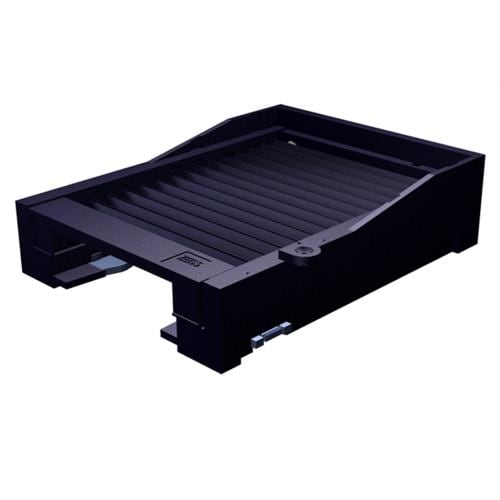

Probe socket for VAST XXT (1)
620161-8511-000
3.763,00 krSales tax not included
 Shipment within 2 Working days

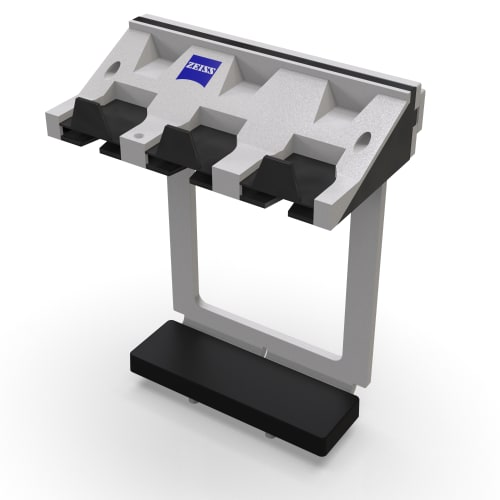

Multi Sensor Rack (MSR) 3-fold for ZEISS O-INSPECT 322
626100-9382-020
Measuring Area X
150
13.126,00 krSales tax not included
 Shipment within 2 Working days
Probe head storage
000000-1028-812
2.860,00 krSales tax not included
 Shipment within 2 Working days
Multi Sensor Rack Telescopic (MSR-T) Y=1280, for CenterMax, w/o Probe Socket
626100-9305-100
24.618,00 krSales tax not included
 Shipment within 2 Working days
50 Items
Maximum availability

Maximum availability

The rigid probe changing magazine ZEISS Multi-Sensor-Rack (MSR) is available in different heights and widths for all sizes of ZEISS coordinate measuring machines. Probe systems are changed automatically while the MSR is located within the measuring volume. The capacity on the MSR is increased with additional planes. The MSR Duplex offers twice as many probe storage locations as the standard version. To do this, it is manually pushed out of the measuring range, rotated by 180 degrees and fixed in the measuring range with repeat accuracy.
Optimized measuring range

Optimized measuring range

The automated probe changing magazine ZEISS ProMax stores probe systems outside the measuring range. This means that the measuring volume is optimally used for the workpiece and the travel path of the probe head, while collisions with the sensor rack are ruled out. When required, the probe systems are automatically moved into the measuring range using a linear module. The measuring software ensures that probe changes are reliable and repeatable.
