M5, Styli stepped, ruby sphere, tungsten carbide shaft
Stylus stepped M5, DK0.6 L15
626105-5544-015
Application
Standard Styli suitable for all common measuring tasks. M5 thread for VAST active scanning sensors.
- Spherical styli have the same probing behavior in every direction
- Ruby is the most common sphere material
- Ruby sphere available from 0.2 up to 12 mm
- Tungsten carbide shaft with high rigidity
- Higher stability through stepped shaft
- Proven ZEISS quality through high-end manufacturing
Details
- Application
- Tactile
- Product Type
- Stylus
- Stylus Type
- Stepped
- Connection Type
- M5
- Stylus Tip Material
- Ruby
- Stylus Tip Geometry
- Sphere

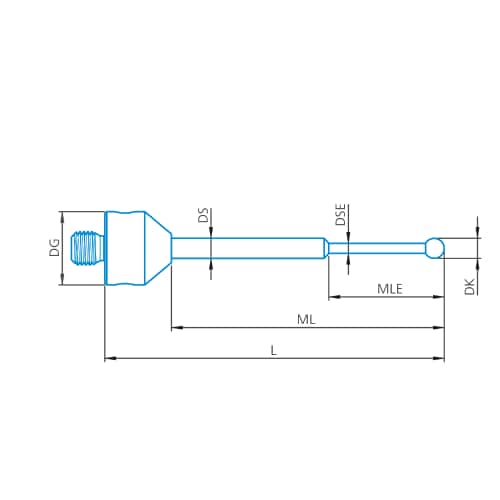

- Ø Sphere (DK)
- 0,6 mm
- Length (L)
- 15,0 mm
- Measurement Length (ML)
- 5,0 mm
- 2nd Measurement Length (MLE)
- 4,6 mm
- Shaft Material
- Tung. Carb.
- Ø Shaft (DS)
- 1,0 mm
- 2nd Ø Shaft (DSE)
- 0,4 mm
- Ø Body (DG)
- 11,0 mm
- Weight
- 6,1 g
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may occur. Therefore, regularly check your styli under a microscope and remember to clean them or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available for cleaning. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
